Usiland Optronics, a professional laser cleaning machine manufacturer & supplier!

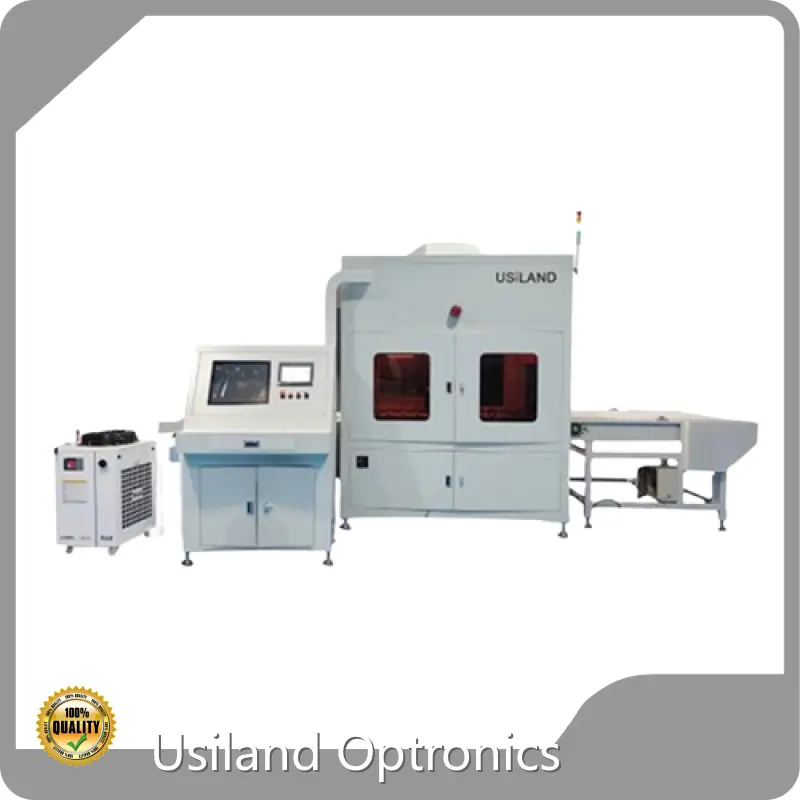

Wholesale 200w Laser Cleaning Machine Supply for Railway
Product details of the 200w laser cleaning machine
Product Overview
Usiland Optronics 200w laser cleaning machine is manufactured under the guidance of skilled professionals using optimum grade materials. The quality of the product meets the latest industry standards. SUZHOU USiLAND OPTRONICS CO.，LTD. also emphasizes on the research and development of new 200w laser cleaning machine products.
Product Introduction
Usiland Optronics's 200w laser cleaning machine has better quality than other products in the industry, which is specifically shown in the following aspects.
Related Parameters
| Project name | Parameter data |
| Laser type | Fiber laser |
| Laser power [W] | 500 |
| Power adjustment range | 10-100（adjustable） |
| Wavelength [nm] | 1064 |
| Conductive fiber length [M] | 10-15 |
| Single pulse energy [mJ] | 50 |
| Humidity [%] | 10-95(non-condensible) |
| Laser grade | IV |
| Cooling system |
Water cooling |
| Service life [h] | ≥80000 |
| Size(h*w*d) [mm³] | 5300*4000*2800 |
| Electrical requirement | AC220, 50Hz |
| Weight [KG] | 4000 |
| Applicable tire size [inch] | 14-24 |
| Appl tire outside diameter [mm] | 500-930 |
| Appl tire inner diameter [mm] | 480-910 |
| Appl width of tire section [mm] | 150-420 |
| Suitable for tire side height [mm] | 35-190 |
| Inner tire spacing [mm] | ≥80 |
| Maximum tyre weight [KG] | 30 |
*Cleaning time: ≤30s for 15 inch tyre; ≤60s for all tires. (Includes loading and unloading time, this time ＜15s)
*Minimum/Maximum ambient temperature [℃]：5-40
Operation Principle Of Our Solution
1. Oil residues, and other lubricants involved in the production are removed by high power IR lasers.
2. Damage-free process to tires.
3. No dead corner cleaning processing is ensured by a flexible laser head.
4. Particles and vapors exhausts are evacuated immediately.
Comparison Of Seal Rubber Layer Before And After Cleaning
Binding agent is the key of our cleaning process, release agent and oil residues can be removed by laser, and binding zone is formed.
Advanbtages Of Laser Cleaning
1. Significantly reduced running costs compared to wet chemical cleaning.
2. Spotless and dry cleaning process.
3. Compatible with the subsequent process (i.e., adhesion of sealants, noise foam or RFID tags).
4. Self-learning machine for accelerated production ramp-up.
5. Turn table design for maximum productivity and laser up-time.
6. Compact design.
7. Low maintenance of laser system.
Oil Residue Layer Cleaning
Material: rubber.
Requirement and cleaning process:
Remove oil residues of the inner surface (Chemical compositions of oil residue are Methylhydrogensiloxane (5-15%) and water ).
The standard internal friction coefficient of cleaned surface is improved over 35mN/m.
Cleaning area: 90cm^2/sec.
Cleaning outcome: Uniform cleaning and negligible damage, the adhesion after cleaning is above 38mN/m, which meets the requirements. The efficiency is higher than target value.
Improved solution for tire manufacturing --- alternative to super glue approach.
System Introduction
Company Advantages
SUZHOU USiLAND OPTRONICS CO.，LTD. has been specializing in the manufacture of 200w laser cleaning machine for many years. We have adopted the latest fabrication and processing technology to adapt to changing market conditions and customer demands. We have a strong design team. The team, with a high sense of market trend and abundant experience in the 200w laser cleaning machine industry, are able to create many new designs each month. At SUZHOU USiLAND OPTRONICS CO.，LTD., you can get quality assurance and professional service. Check it!
Our products are of reliable quality, with great cost performance and you can purchase them with confidence. If you are in need, please contact us for business discussion.
