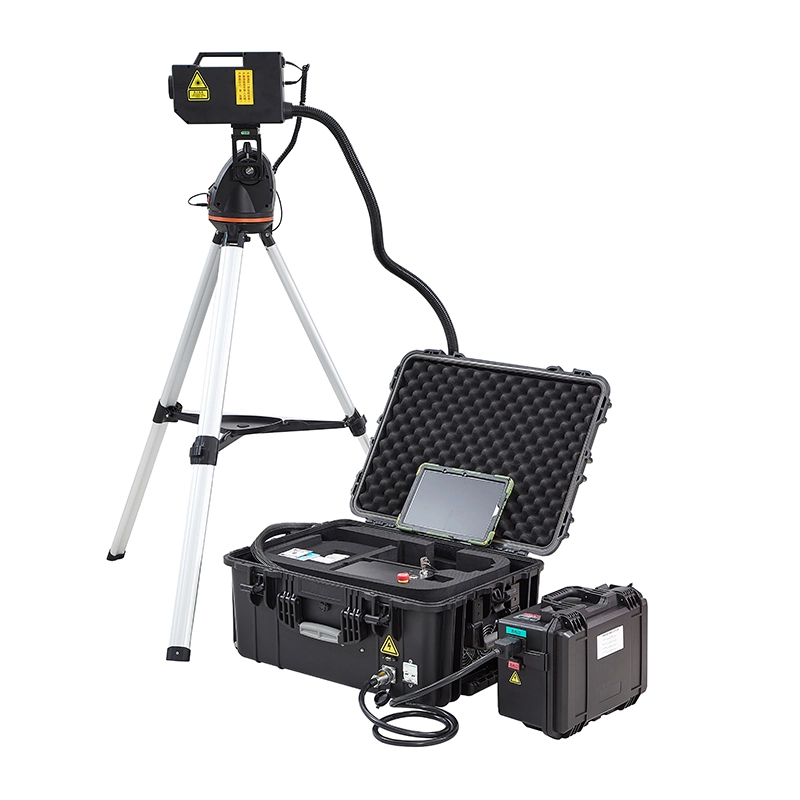

Smart Grid Cleaning Device Cyclone 1000 | USILAND

Working Distance: 400m

Power:48V/DC

Battery: 1.2 hours

Cut tree branches: <20cm

    oops...!

    no product data.

    Go to homepage

    Product Advantage

    主图 (2) (2)
    ● Short time solution to avoild outage
    1-2 minutes for operation, very quick to remove the objects
    ● Send laser from ground, no dangers
    No need to climb the powerline tower, reduce danger to workers
    tubiao56
    ● No damage to powerline
    Cut off in a very short time, no damage to powerline
    主图 (2) (2)
    ● Long working distance : 400m
    400m working distance suit to different situations.
    ● No limit from the weather
    No matter rainy, windy or snowing, both avaliable to work
    tubiao57
    ● High efficiency in clearing tree obstacles
    Once connect to the power, it will work, no oil, gas..etc.

    Basic Parameters

    This series of laser power grid foreign object removal devices is specifically designed for the rapid removal of exposed power grid foreign objects, providing an ideal and efficient remote laser foreign object removal device for maintaining the safety of power grids and high-speed railway lines.

    Project name

    UAV-Cyclone 1000

    Size[mm³]

    630*490*312

    Weight[kg]

    39

    Laser power[W]

    1000+50

    Power range[%]

    20-100

    Wavelength[mm]

    1080

    Working distance [m]

    400

    Humidity [%]

    10– 90

    Working temperature [℃]

    -20~40

    Fiber length[cm]

    300

    Battery specification[V AH]

    48V 83AH

    Working hours[H]

    1.2

    Battery weight[kg]

    20

    Power consumption [W]

    3300

    Cooling system

    Air cooling

    *Note: For reference only, the specific material and width of the material to be removed are related.

    Working Principle

    Smart Grid Cleaning Device Cyclone 1000 | USILAND 9

    High-energy laser is utilized to instantly dissolve foreign objects entangled in high-voltage lines without damaging transmission lines.


    When it is found that there is a foreign object hanging on the grounding wire that affects safe operation, the operator aims at the target through a sight on the ground, controls the laser device to emit laser.


    Through several seconds of burning and melting, the plastic-fiber foreign object is melted off, and the laser is turned off, thus completing the entire processes of handling foreign object with electricity.


    The target objects of the smart grid cleaning device mainly include balloons, kites, and plastic bags.


    The 1000W model, with high power, is specifically designed for clearing tree branches (above 10cm).

    Product Details

    Product Details1
    Product Details1
    Product Details2
    Product Details2
    Product Details3
    Product Details3
    Product Details4
    Product Details4
    Product Details5
    Product Details5
    battery
    battery
    leaser head
    leaser head
    Product Details8
    Product Details8

    Steps for usage

    Setup Device
    Aiming Object
    Remove Object










    Safety Design

    Cyclone-1000已使用
    1701073203252-21
    Personal induction system
    The device will detect if any people front of it in a certain distance.
    1701073203571-22
    Emergency button
    If any emergency occurs, you can press this button to shu off the device in a short time.
    1701073204482-24
    Laser control pad
    The laser can be controled using laser pad.
    1701073206013-26
    Safety key switch
    Double insurance for starting the device.
    1701073204773-25
    Battery to achieve EMC dynamic
    The APP displays the battery status.
