Laser Cannon Factory for Oilfield

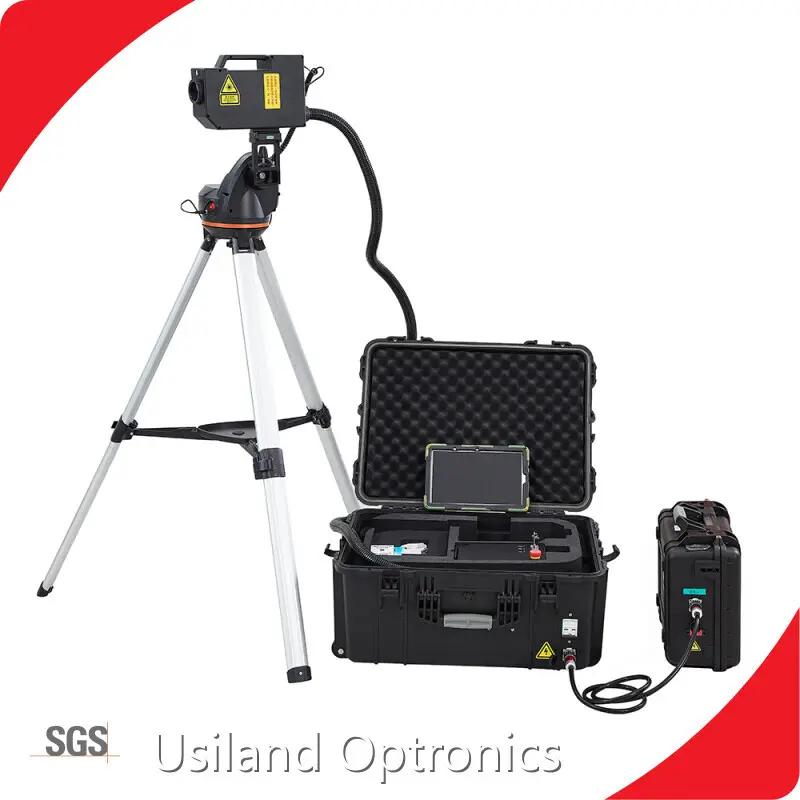

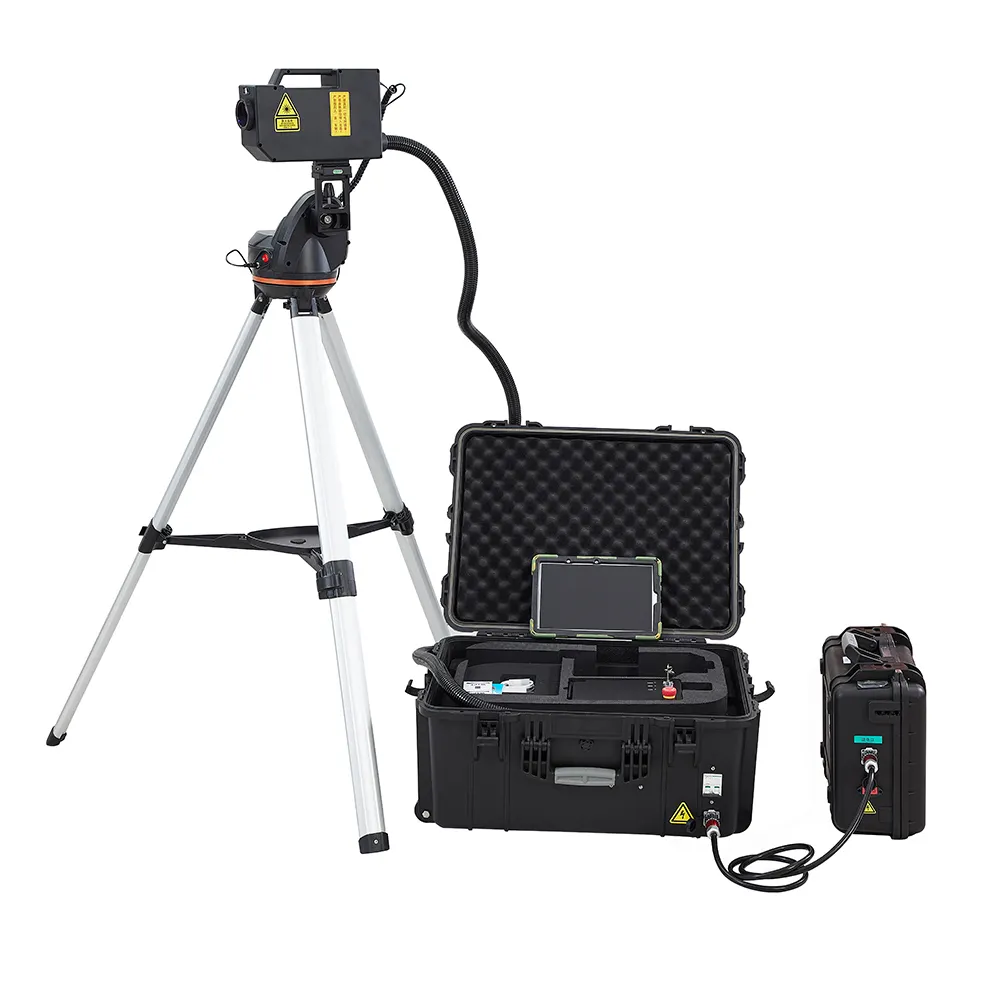

Product details of the laser cannon
Product Introduction
The offered Usiland Optronics laser cannon is produced by our dedicated workers by using the latest technology. The product has excellent performance and stable quality. SUZHOU USiLAND OPTRONICS CO.，LTD. spares no effort to pursue better solutions that suit its customers' needs.
Product Advantage
Basic Parameters
This series of laser power grid foreign object removal devices is specifically designed for the rapid removal of exposed power grid foreign objects, providing an ideal and efficient remote laser foreign object removal device for maintaining the safety of power grids and high-speed railway lines.
|
Project name |
UAV-Cyclone 500 |
|
Size[mm³] |
610*440*326 |
|
Weight[kg] |
24.5 |
|
Laser power[W] |
500+50 |
|
Power range[%] |
20-100 |
|
Wavelength[mm] |
1080 |
|
Working distance [m] |
300 |
|
Humidity [%] |
10– 90 |
|
Working temperature [℃] |
-20~40 |
|
Fiber length[cm] |
270 |
|
Battery specification[V AH] |
48V 55AH |
|
Working hours[H] |
2 |
|
Battery weight[kg] |
12.6 |
|
Power consumption [W] |
1600 |
|
Cooling system |
Air cooling |
*Note: For reference only, the specific material and width of the material to be removed are related.
Working Principle
High-energy laser is utilized to instantly dissolve foreign objects entangled in high-voltage lines without damaging transmission lines.
When it is found that there is a foreign object hanging on the grounding wire that affects safe operation, the operator aims at the target through a sight on the ground, controls the laser device to emit laser.
Through several seconds of burning and melting, the plastic-fiber foreign object is melted off, and the laser is turned off, thus completing the entire processes of handling foreign object with electricity.
The target objects of the smart grid cleaning device mainly include balloons, kites, and plastic bags.
The 500W model, with high power, is specifically designed for clearing tree branches (above 10cm).
Product Details
Steps for usage
Safety Design
