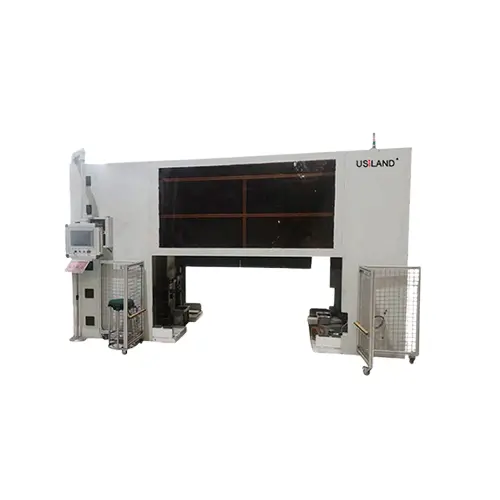

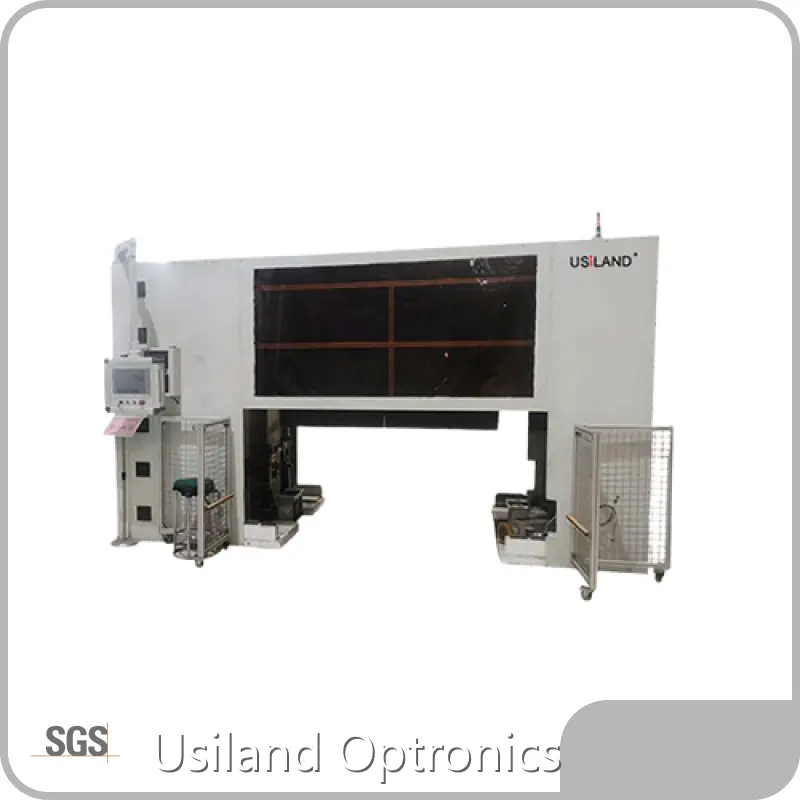

100w Laser Cleaning Machine Price Bulk Buy Usiland Optronics-1
Product details of the 100w laser cleaning machine price
Quick Overview
No harmful materials are used in the production of Usiland Optronics 100w laser cleaning machine price. Products must be inspected by our inspection system to ensure that the quality meets industry requirements. Our products have won many praises from customers worldwide.
Product Description
Usiland Optronics strives excellent quality by attaching great importance to details in the production of 100w laser cleaning machine price.
Related Parameters
| Project name | Parameter data |
| Item | PARAMETER |
| Size(h*w*d) [mm³] | Approx.230*225*160 |
| Cooling system | Water cooling |
| Wavelength [nm] | 1064 |
| Power supply requirement | 380V AC |
| Ambient humidity [%] | ≤80 |
| Laser Class | IV |
| Run-length [mm] | 10-170 |
| Rperating mode | Airborne |
| Focal length [mm] | 440 |
| Cable length [m] | 15 |
| Cleaning efficiency [Min] | 5-25 |
*Weight [KG]：6 (Excluding components such as lines and water pipes)
*Cleaning method：Fully automatic wheelset cleaning
*Min/Max operating temperature [℃]: 5-40
*Max power consumption [W]: 600
With the rapid development of railway train technology, the train speed has been increased in recent years, so the performance requirements of each part of the train have increased accordingly.
Vehicle wheelset is an important part of train operation, which is composed of two wheels firmly pressed on the same axle. The role of the wheel set is to ensure the operation and steering of the train on the rail, bear all the static and dynamic load from the train, transfer it to the rail and transfer the load generated by the uneven line to one of the train components and is also one of the most critical control points to determine the safety of the train.
Therefore, in the process of train maintenance, the requirements for the quality of wheelset maintenance are also extremely strict.
Traditional Cleaning:
At present, the cleaning of the axle (wheelset) of each maintenance company is the use of two chemical substances, paint defixation and antaite with medium water and steel wire wheels for circulation washing.
Laser Cleaning:
1. Comes with air purification system. At the same time, collect the rust particles of the cleaned paint.
2. No damage to wheelsets. During the cleaning operation, the laser cleaning system completely removes the rubber attachments without causing any damage to the metal surface of the wheelset.
3. Automated cleaning operations. The automatic system replaces the manual cleaning operation, freeing the worker productivity.
4. Seal the cabinet and isolate the production area. The closed cabinet is equipped with a safety door that can rise and fall, which can completely avoid laser damage to workers.
Principle Of Laser Cleaning:
1. Laser beam is absorbed by the pollution layer on the metal surface.
2. Big power absorption formed rapidly inflated material steam plasma, become shock wave.
3. Shock makes pollution layer into pieces and be removed.
4. The width of light pulse must be short enough to avoid heat buildup that destroys the treated surface.
5. Experiments show that plasma is generated on the metal surface when there are oxides on the metal surface.
Company Advantages
Located in su zhou, SUZHOU USiLAND OPTRONICS CO.，LTD. is famous for the high-quality laser cleaning machines,laser bird deterrent in the industry. Usiland Optronics is committed to providing quality and efficient services for customers. We have ample inventory and discounts for large purchases. Welcome to contact us!
