Wholesale Usiland Optronics Laser Cleaning Machine 1000w Price for Railway

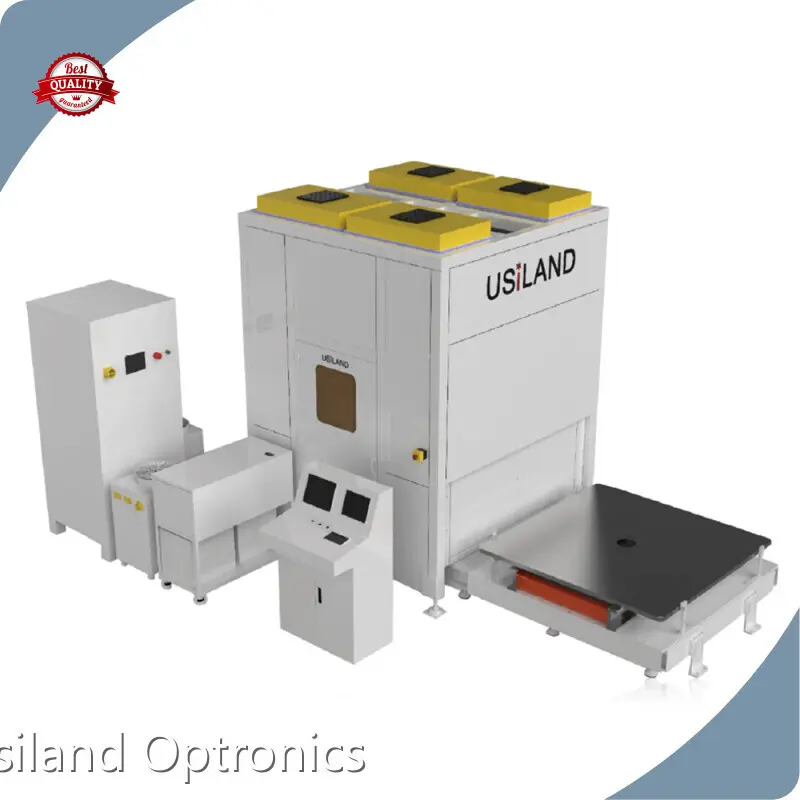

S-TMCS-500 comes with 6 high frequency picosecond laser heads, providing a range of laser frequencies to cater for different types of mold materials and accuracy levels. This ensures an even and accurate cleaning of tire molds.
S-TMCS-500 is equipped with an automated cleaning system, ensuring the whole cleaning process is completed without the need for manual intervention, saving time and human resources. The system is also equipped with an alarm system to prevent accidental damage to molds, eliminating the risk of personnel who operate the cleaning system.
This system guarantees an excellent cleaning result, saving resources and improving work efficiency. The water airflow pattern system is able to generate strong air pressure, ensuring thorough cleaning of the tire molds with no residues.
This equipment has undergone rigorous quality testing to ensure maximum performance, durability, and reliability. It is also designed with user-friendly interface and user manual documentation, allowing users to get up and running the system quickly and easily.
Related Parameters
| Project name | Parameter data |
| Working mode | Automatic |
| Single pulse energy [mJ] | 50 |
| Cooling system | Water cooling |
| Laser power [W] | 500 |
| Wavelength [nm] | 1064 |
| Humidity [%] | 10-95(non-condensible) |
| Cleaning efficiency [Min] | 25-45 |
| Power supply | 220V AC |
| Switch machine time [s] | Time ＜30 |
| Cleaning size [inch] | 11-75 |
| Laser level | IV |
*Minimum / Maximum ambient temperature [℃]: 5-40
*Intelligent operation
One-click operation, With ERP/MES function, production history and video inquiry.
*Laser cleaning head
＜1.5kg, with Galvanometer feedback function, Effective protection of cleaning tools.
*Cleaning method
Fully automatic cleaning of side panel and pattern block(you don't need to disassemble the mold sleeve insulation sleeve or disassemble the mold sleeve in blocks to place automatic cleaning, two kinds of automatic process cleaning and two half molds).
Advantages/Features
1. Touchless precision cleaning without mold wear.
2. Spotless cleaning of intricate tread designs, including winter tire molds.
3. Dry process with almost no consumable cost.
4. Improved Housekeeping – no blasting dust in the maintenance area.
5. Environmentally friendly – no chemicals, minimum waste volume, energy efficient.
6. Safe – low noise emissions.
7. Full automation guarantees a flexible and reproducible process of laser cleaning with USiLAND's S-TMCS-500.
8. Flexible and mobile laser cleaning with IPG.
9. Friendly Price And Stable Work.
Full Replace Of 4JET
1. High quality cleaning of all mold types.
2. Lowest emissions of all cleaning systems.
3. Lowest operation cost of all cleaning technologies.
4. Abrasion free and complete cleaning of sidewalls and tread area-No damage.
5. Media free(no dry-ice,no blasting media).
6. Cold mold and hot mold can be cleaned.
7. 360°canning, No dead corner,Including the uneven crevices.
Compared With Traditional Cleaning Methods
Note:
1. After laser cleaning, there is no damage on the surface of the tire mold.
2. Laser cleaning without residue.
3. After laser cleaning the mod, the tires produced no appearance defects.
Product Details
Delivery & Service
Company Advantages
· Usiland Optronics laser cleaning machine 1000w price is of exceptional design and high-quality materials.
· The professional technical team conducts a comprehensive quality control for this product in the production.
· The potential market benefits of the product appears over time.
Company Features
· SUZHOU USiLAND OPTRONICS CO.，LTD. is a strong rival in the domestic market. We take pride in the quality laser cleaning machine 1000w price that developed, manufactured, and supplied by us.
· Usiland Optronics's technical support team is composed of a group of dedicated technical engineers.
· SUZHOU USiLAND OPTRONICS CO.，LTD. aims to achieve global development in the laser cleaning machine 1000w price industry. Please contact.
Application of the Product
Usiland Optronics's laser cleaning machine 1000w price is widely used in the industry.
Usiland Optronics is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
