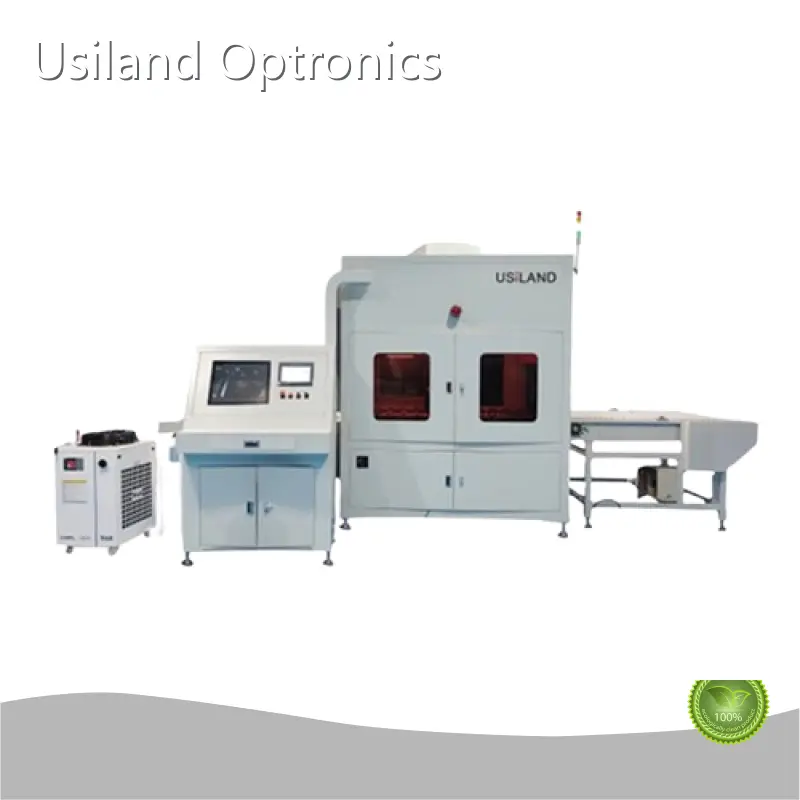

Wholesale Laser Cleaning Machine Supplier Usiland Optronics Brand
Product details of the laser cleaning machine supplier
Product Information
In the course of excellent quality of laser cleaning machine supplier, our price-quality ratio is quite reasonable. The quality of the product has been recognized by the international authoritative test institute. laser cleaning machine supplier is sold to many countries and district.
Related Parameters
| Project name | Parameter data |
| Laser type | Fiber laser |
| Laser power [W] | 500 |
| Power adjustment range | 10-100（adjustable） |
| Wavelength [nm] | 1064 |
| Conductive fiber length [M] | 10-15 |
| Single pulse energy [mJ] | 50 |
| Humidity [%] | 10-95(non-condensible) |
| Laser grade | IV |
| Cooling system |
Water cooling |
| Service life [h] | ≥80000 |
| Size(h*w*d) [mm³] | 5300*4000*2800 |
| Electrical requirement | AC220, 50Hz |
| Weight [KG] | 4000 |
| Applicable tire size [inch] | 14-24 |
| Appl tire outside diameter [mm] | 500-930 |
| Appl tire inner diameter [mm] | 480-910 |
| Appl width of tire section [mm] | 150-420 |
| Suitable for tire side height [mm] | 35-190 |
| Inner tire spacing [mm] | ≥80 |
| Maximum tyre weight [KG] | 30 |
*Cleaning time: ≤30s for 15 inch tyre; ≤60s for all tires. (Includes loading and unloading time, this time ＜15s)
*Minimum/Maximum ambient temperature [℃]：5-40
Operation Principle Of Our Solution
1. Oil residues, and other lubricants involved in the production are removed by high power IR lasers.
2. Damage-free process to tires.
3. No dead corner cleaning processing is ensured by a flexible laser head.
4. Particles and vapors exhausts are evacuated immediately.
Comparison Of Seal Rubber Layer Before And After Cleaning
Binding agent is the key of our cleaning process, release agent and oil residues can be removed by laser, and binding zone is formed.
Advanbtages Of Laser Cleaning
1. Significantly reduced running costs compared to wet chemical cleaning.
2. Spotless and dry cleaning process.
3. Compatible with the subsequent process (i.e., adhesion of sealants, noise foam or RFID tags).
4. Self-learning machine for accelerated production ramp-up.
5. Turn table design for maximum productivity and laser up-time.
6. Compact design.
7. Low maintenance of laser system.
Oil Residue Layer Cleaning
Material: rubber.
Requirement and cleaning process:
Remove oil residues of the inner surface (Chemical compositions of oil residue are Methylhydrogensiloxane (5-15%) and water ).
The standard internal friction coefficient of cleaned surface is improved over 35mN/m.
Cleaning area: 90cm^2/sec.
Cleaning outcome: Uniform cleaning and negligible damage, the adhesion after cleaning is above 38mN/m, which meets the requirements. The efficiency is higher than target value.
Improved solution for tire manufacturing --- alternative to super glue approach.
System Introduction
Company Feature
• Usiland Optronics focuses on the cultivation of scientific and technological talents. At present, a team of experienced experts and elite personnel has been established to provide a strong guarantee for product development.
• Our company not only pays attention to the sales of products, but also tries our best to meet the diversified needs of customers. Our goal is to bring consumers a relaxing and enjoyable experience.
• Usiland Optronics has gone through years of development. After all these years, we have expanded our business scale and improved our strength. Our social recognition has also been improved.
If you want to know the specific price for all kinds of electric equipment, please leave your contact information. Usiland Optronics will reply you later.
