Product details of the laser cleaning equipment for sale
Product Information
Standard manufacturing: the production of Usiland Optronics laser cleaning equipment for sale is based on the advanced technology developed by ourselves autonomously and the complete management system and standards. The quality check team ensures that each detail of this product is in good condition. SUZHOU USiLAND OPTRONICS CO.，LTD. has the world's most advanced technology and testing method.

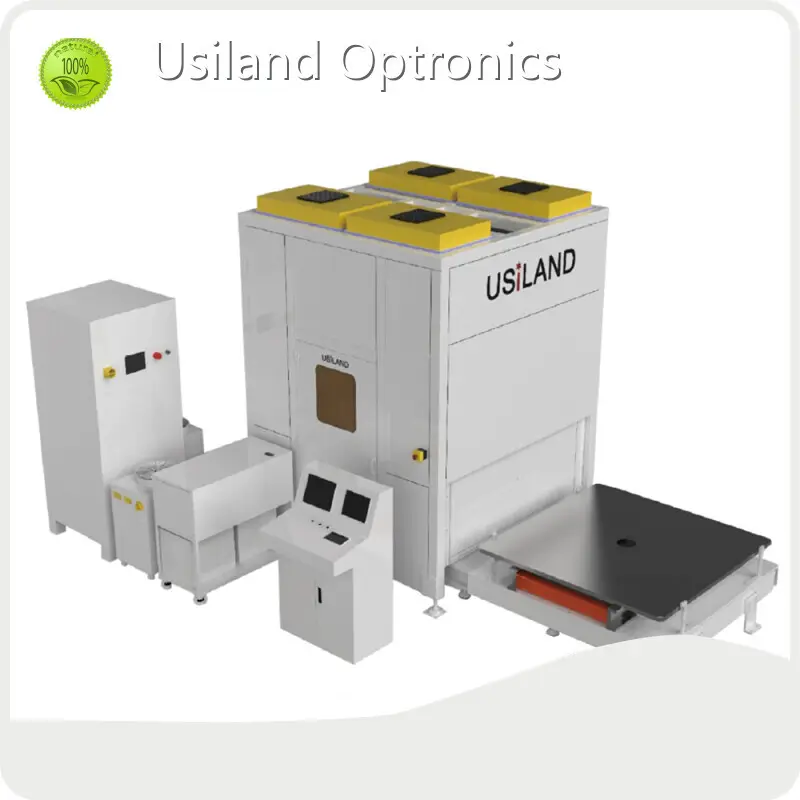

S-TMCS-500 comes with 6 high frequency picosecond laser heads, providing a range of laser frequencies to cater for different types of mold materials and accuracy levels. This ensures an even and accurate cleaning of tire molds.
S-TMCS-500 is equipped with an automated cleaning system, ensuring the whole cleaning process is completed without the need for manual intervention, saving time and human resources. The system is also equipped with an alarm system to prevent accidental damage to molds, eliminating the risk of personnel who operate the cleaning system.
This system guarantees an excellent cleaning result, saving resources and improving work efficiency. The water airflow pattern system is able to generate strong air pressure, ensuring thorough cleaning of the tire molds with no residues.
This equipment has undergone rigorous quality testing to ensure maximum performance, durability, and reliability. It is also designed with user-friendly interface and user manual documentation, allowing users to get up and running the system quickly and easily.
Related Parameters
| Project name | Parameter data |
| Working mode | Automatic |
| Single pulse energy [mJ] | 50 |
| Cooling system | Water cooling |
| Laser power [W] | 500 |
| Wavelength [nm] | 1064 |
| Humidity [%] | 10-95(non-condensible) |
| Cleaning efficiency [Min] | 25-45 |
| Power supply | 220V AC |
| Switch machine time [s] | Time ＜30 |
| Cleaning size [inch] | 11-75 |
| Laser level | IV |
*Minimum / Maximum ambient temperature [℃]: 5-40
*Intelligent operation
One-click operation, With ERP/MES function, production history and video inquiry.
*Laser cleaning head
＜1.5kg, with Galvanometer feedback function, Effective protection of cleaning tools.
*Cleaning method
Fully automatic cleaning of side panel and pattern block(you don't need to disassemble the mold sleeve insulation sleeve or disassemble the mold sleeve in blocks to place automatic cleaning, two kinds of automatic process cleaning and two half molds).
Advantages/Features
1. Touchless precision cleaning without mold wear.
2. Spotless cleaning of intricate tread designs, including winter tire molds.
3. Dry process with almost no consumable cost.
4. Improved Housekeeping – no blasting dust in the maintenance area.
5. Environmentally friendly – no chemicals, minimum waste volume, energy efficient.
6. Safe – low noise emissions.
7. Full automation guarantees a flexible and reproducible process of laser cleaning with USiLAND's S-TMCS-500.
8. Flexible and mobile laser cleaning with IPG.
9. Friendly Price And Stable Work.
Full Replace Of 4JET
1. High quality cleaning of all mold types.
2. Lowest emissions of all cleaning systems.
3. Lowest operation cost of all cleaning technologies.
4. Abrasion free and complete cleaning of sidewalls and tread area-No damage.
5. Media free(no dry-ice,no blasting media).
6. Cold mold and hot mold can be cleaned.
7. 360°canning, No dead corner,Including the uneven crevices.
Compared With Traditional Cleaning Methods
Note:
1. After laser cleaning, there is no damage on the surface of the tire mold.
2. Laser cleaning without residue.
3. After laser cleaning the mod, the tires produced no appearance defects.
