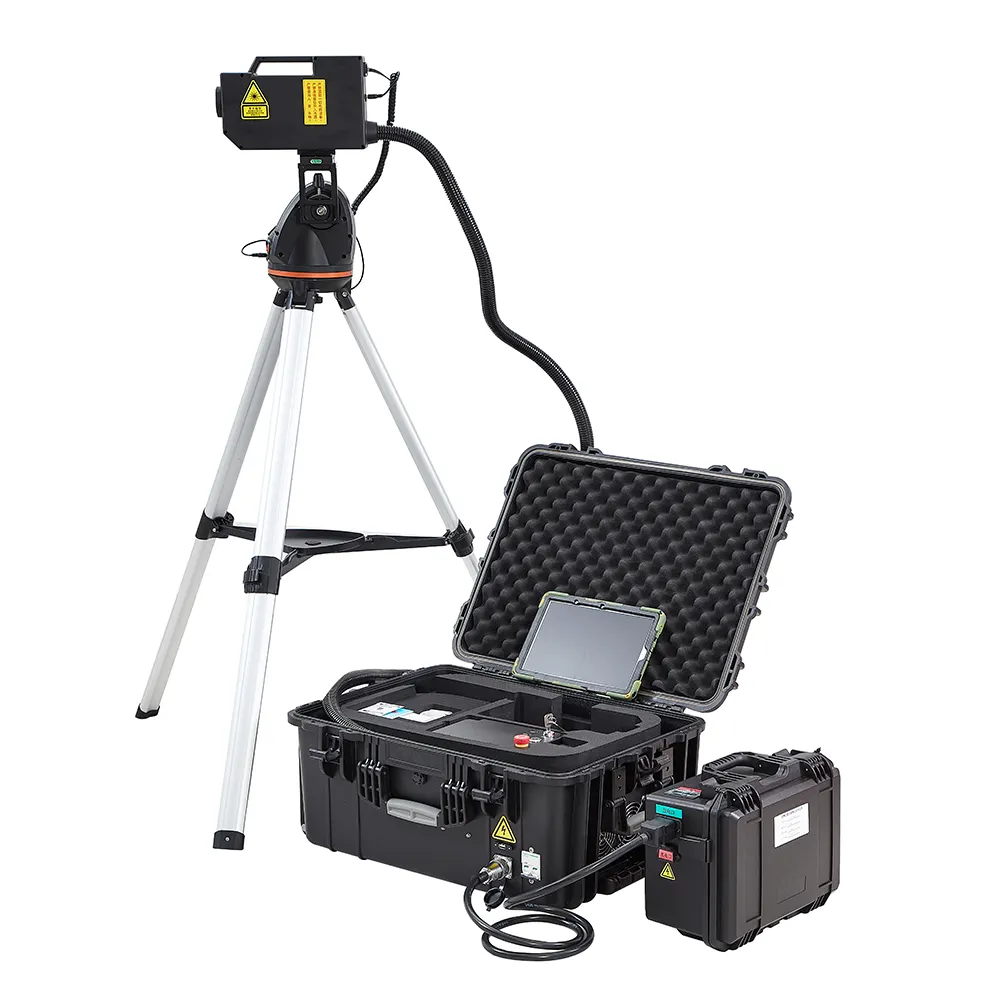

Product details of the smart grid cleaning device

Product Overview

Rational construction design makes smart grid cleaning device to be operated better and more smoothly. This product has a combination of superior performance and long life compared to competing products. Usiland Optronics's smart grid cleaning device is available in a wide range of applications. SUZHOU USiLAND OPTRONICS CO.，LTD. realized since its inception that quality is crucial to stable business.

Product Information

smart grid cleaning device's outstanding quality is shown in the details.

Product Advantage

● Short time solution to avoild outage

1-2 minutes for operation, very quick to remove the objects

● Send laser from ground, no dangers

No need to climb the powerline tower, reduce danger to workers

● No damage to powerline

Cut off in a very short time, no damage to powerline

● Long working distance : 200m

200m working distance suit to different situations.

● No limit from the weather

No matter rainy, windy or snowing, both avaliable to work

● High efficiency in clearing tree obstacles

Once connect to the power, it will work, no oil, gas..etc.

Basic Parameters

This series of laser power grid foreign object removal devices is specifically designed for the rapid removal of exposed power grid foreign objects, providing an ideal and efficient remote laser foreign object removal device for maintaining the safety of power grids and high-speed railway lines.

Project name	Cyclone 200
Size[mm³]	630490312
Weight[kg]	33.5
Laser power[W]	200+30
Power range[%]	20-100
Wavelength[mm]	1080
Working distance [m]	200
Humidity [%]	10– 90
Working temperature [℃]	-20~40
Fiber length[cm]	270
Battery specification[V AH]	48V 55AH
Working hours[H]	4
Battery weight[kg]	12.6
Power consumption [W]	800
Cooling system	Air cooling

*Note: For reference only, the specific material and width of the material to be removed are related.

Working Principle

High-energy laser is utilized to instantly dissolve foreign objects entangled in high-voltage lines without damaging transmission lines.

When it is found that there is a foreign object hanging on the grounding wire that affects safe operation, the operator aims at the target through a sight on the ground, controls the laser device to emit laser.

Through several seconds of burning and melting, the plastic-fiber foreign object is melted off, and the laser is turned off, thus completing the entire processes of handling foreign object with electricity.

The target objects of the smart grid cleaning device mainly include balloons, kites, and plastic bags.

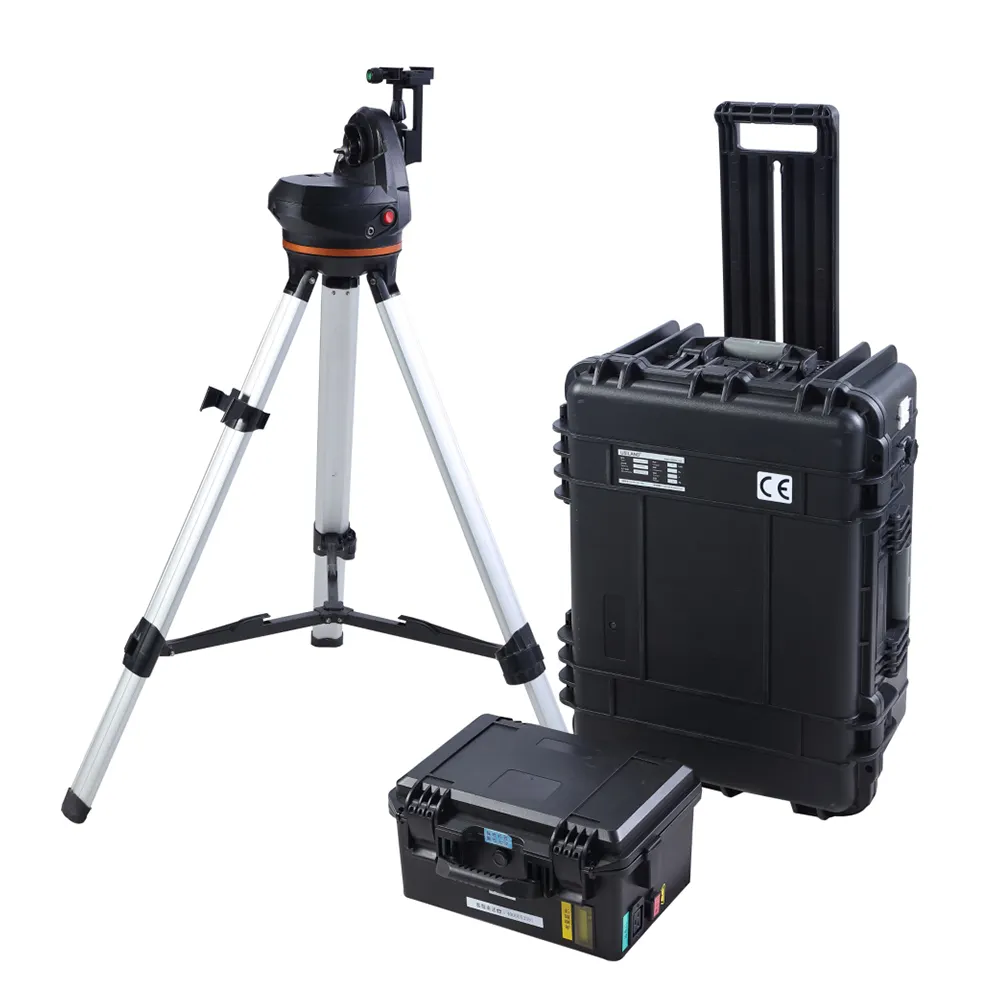

Product Details

Battery (2)

main body fan

200

part of battery

Steps for usage

Setup Device

Aiming Object

Remove Object

Safety Design

Personal induction system

The device will detect if any people front of it in a certain distance.

Emergency button

If any emergency occurs, you can press this button to shu off the device in a short time.

Laser control pad

The laser can be controled using laser pad.

Safety key switch

Double insurance for starting the device.

Battery to achieve EMC dynamic

The APP displays the battery status.
