Usiland Optronics, a professional laser cleaning machine manufacturer & supplier!
OEM Laser Cleaning Equipment Usiland Optronics

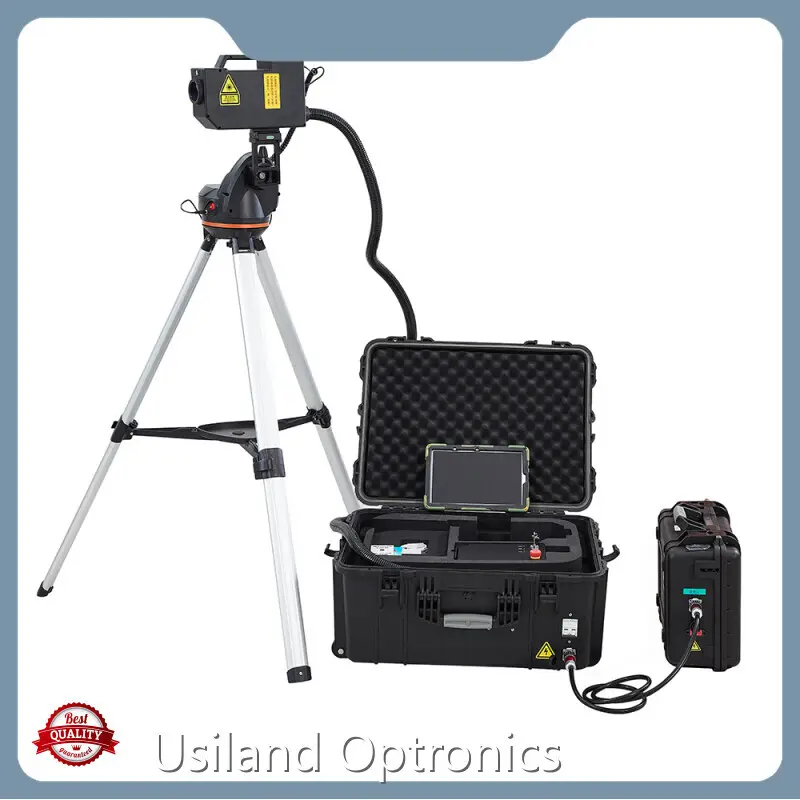

Product details of the laser cleaning equipment
Product Overview
Usiland Optronics laser cleaning equipment is designed with the latest technology and suitable for use in various environments. The application of laser cleaning equipment can save the cost of customers and go a little further to simplify the usage methods. laser cleaning equipment, one of Usiland Optronics's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields. SUZHOU USiLAND OPTRONICS CO.，LTD. can provide free installation service for customers.
Product Introduction
Usiland Optronics's laser cleaning equipment has more advantages over similar products in terms of technology and quality.
Product Advantage
Basic Parameters
This series of laser power grid foreign object removal devices is specifically designed for the rapid removal of exposed power grid foreign objects, providing an ideal and efficient remote laser foreign object removal device for maintaining the safety of power grids and high-speed railway lines.
|
Project name |
UAV-Cyclone 500 |
|
Size[mm³] |
610*440*326 |
|
Weight[kg] |
24.5 |
|
Laser power[W] |
500+50 |
|
Power range[%] |
20-100 |
|
Wavelength[mm] |
1080 |
|
Working distance [m] |
300 |
|
Humidity [%] |
10– 90 |
|
Working temperature [℃] |
-20~40 |
|
Fiber length[cm] |
270 |
|
Battery specification[V AH] |
48V 55AH |
|
Working hours[H] |
2 |
|
Battery weight[kg] |
12.6 |
|
Power consumption [W] |
1600 |
|
Cooling system |
Air cooling |
*Note: For reference only, the specific material and width of the material to be removed are related.
Working Principle
High-energy laser is utilized to instantly dissolve foreign objects entangled in high-voltage lines without damaging transmission lines.
When it is found that there is a foreign object hanging on the grounding wire that affects safe operation, the operator aims at the target through a sight on the ground, controls the laser device to emit laser.
Through several seconds of burning and melting, the plastic-fiber foreign object is melted off, and the laser is turned off, thus completing the entire processes of handling foreign object with electricity.
The target objects of the smart grid cleaning device mainly include balloons, kites, and plastic bags.
The 500W model, with high power, is specifically designed for clearing tree branches (above 10cm).
Product Details
Steps for usage
Safety Design
Company Introduction
SUZHOU USiLAND OPTRONICS CO.，LTD., situated in su zhou, is a company that mainly deals with the management of laser cleaning machines,laser bird deterrent. We insist on providing the most professional service for our customers with a warm and responsible attitude. So our customers' satisfaction and trust for us would be enhanced. The products produced are qualified products of high quality. If you are interested in our products, please contact us!
