Usiland Optronics, a professional laser cleaning machine manufacturer & supplier!
Latest Laser Cleaning Equipment for Sale Laser Cleaning Equipment for Sale Company

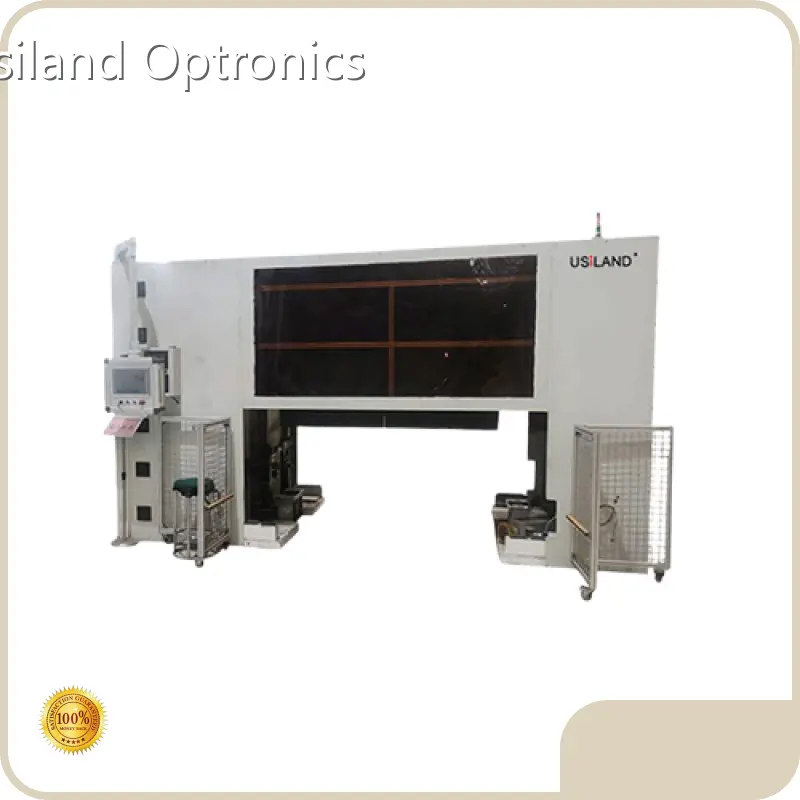

Product details of the laser cleaning equipment for sale
Product Description
The wonderful color of our laser cleaning equipment for sale is big plus. The strict internal quality control system enables laser cleaning equipment for sale to reach the international leading level. SUZHOU USiLAND OPTRONICS CO.，LTD. grasps the essential laws of objective things and the nature of human nature, and develop harmoniously.
Related Parameters
| Project name | Parameter data |
| Item | PARAMETER |
| Size(h*w*d) [mm³] | Approx.230*225*160 |
| Cooling system | Water cooling |
| Wavelength [nm] | 1064 |
| Power supply requirement | 380V AC |
| Ambient humidity [%] | ≤80 |
| Laser Class | IV |
| Run-length [mm] | 10-170 |
| Rperating mode | Airborne |
| Focal length [mm] | 440 |
| Cable length [m] | 15 |
| Cleaning efficiency [Min] | 5-25 |
*Weight [KG]：6 (Excluding components such as lines and water pipes)
*Cleaning method：Fully automatic wheelset cleaning
*Min/Max operating temperature [℃]: 5-40
*Max power consumption [W]: 600
With the rapid development of railway train technology, the train speed has been increased in recent years, so the performance requirements of each part of the train have increased accordingly.
Vehicle wheelset is an important part of train operation, which is composed of two wheels firmly pressed on the same axle. The role of the wheel set is to ensure the operation and steering of the train on the rail, bear all the static and dynamic load from the train, transfer it to the rail and transfer the load generated by the uneven line to one of the train components and is also one of the most critical control points to determine the safety of the train.
Therefore, in the process of train maintenance, the requirements for the quality of wheelset maintenance are also extremely strict.
Traditional Cleaning:
At present, the cleaning of the axle (wheelset) of each maintenance company is the use of two chemical substances, paint defixation and antaite with medium water and steel wire wheels for circulation washing.
Laser Cleaning:
1. Comes with air purification system. At the same time, collect the rust particles of the cleaned paint.
2. No damage to wheelsets. During the cleaning operation, the laser cleaning system completely removes the rubber attachments without causing any damage to the metal surface of the wheelset.
3. Automated cleaning operations. The automatic system replaces the manual cleaning operation, freeing the worker productivity.
4. Seal the cabinet and isolate the production area. The closed cabinet is equipped with a safety door that can rise and fall, which can completely avoid laser damage to workers.
Principle Of Laser Cleaning:
1. Laser beam is absorbed by the pollution layer on the metal surface.
2. Big power absorption formed rapidly inflated material steam plasma, become shock wave.
3. Shock makes pollution layer into pieces and be removed.
4. The width of light pulse must be short enough to avoid heat buildup that destroys the treated surface.
5. Experiments show that plasma is generated on the metal surface when there are oxides on the metal surface.
