Laser Cleaning Equipment for Railway for Business

Inquiry

Product Advantage

● Short time solution to avoild outage

1-2 minutes for operation, very quick to remove the objects

● Send laser from ground, no dangers

No need to climb the powerline tower, reduce danger to workers

● No damage to powerline

Cut off in a very short time, no damage to powerline

● Long working distance : 400m

400m working distance suit to different situations.

● No limit from the weather

No matter rainy, windy or snowing, both avaliable to work

● High efficiency in clearing tree obstacles

Once connect to the power, it will work, no oil, gas..etc.

Basic Parameters

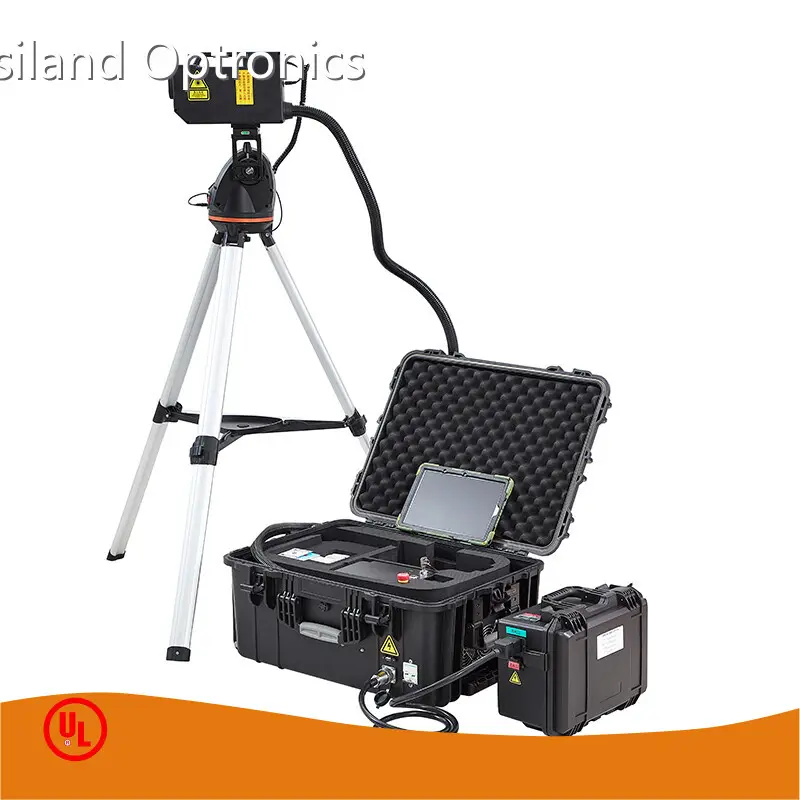

This series of laser power grid foreign object removal devices is specifically designed for the rapid removal of exposed power grid foreign objects, providing an ideal and efficient remote laser foreign object removal device for maintaining the safety of power grids and high-speed railway lines.

Project name	UAV-Cyclone 1000
Size[mm³]	630490312
Weight[kg]	39
Laser power[W]	1000+50
Power range[%]	20-100
Wavelength[mm]	1080
Working distance [m]	400
Humidity [%]	10– 90
Working temperature [℃]	-20~40
Fiber length[cm]	300
Battery specification[V AH]	48V 83AH
Working hours[H]	1.2
Battery weight[kg]	20
Power consumption [W]	3300
Cooling system	Air cooling

*Note: For reference only, the specific material and width of the material to be removed are related.

Working Principle

Laser Cleaning Equipment for Railway for Business 9

High-energy laser is utilized to instantly dissolve foreign objects entangled in high-voltage lines without damaging transmission lines.

When it is found that there is a foreign object hanging on the grounding wire that affects safe operation, the operator aims at the target through a sight on the ground, controls the laser device to emit laser.

Through several seconds of burning and melting, the plastic-fiber foreign object is melted off, and the laser is turned off, thus completing the entire processes of handling foreign object with electricity.

The target objects of the smart grid cleaning device mainly include balloons, kites, and plastic bags.

The 1000W model, with high power, is specifically designed for clearing tree branches (above 10cm).

Product Details

Product Details1

Product Details2

Product Details3

Product Details4

Product Details5

battery

leaser head

Product Details8

Steps for usage

Setup Device

Aiming Object

Remove Object

Safety Design

Personal induction system

The device will detect if any people front of it in a certain distance.

Emergency button

If any emergency occurs, you can press this button to shu off the device in a short time.

Laser control pad

The laser can be controled using laser pad.

Safety key switch

Double insurance for starting the device.

Battery to achieve EMC dynamic

The APP displays the battery status.
