Laser Cannon Factory for Railway

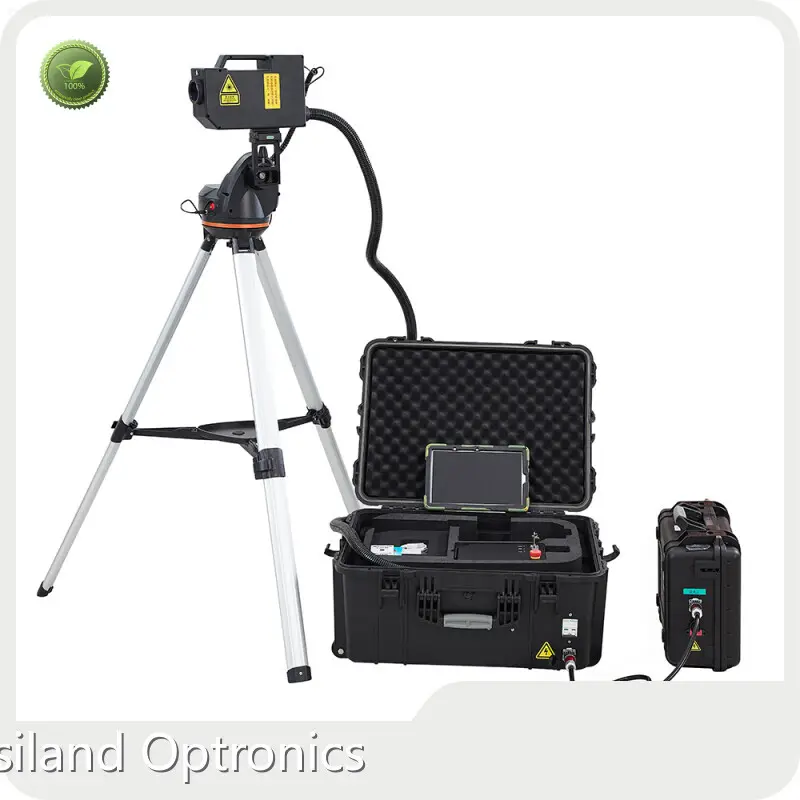

Product details of the laser cannon
Product Information
Usiland Optronics laser cannon is designed for ease-of-use to improve convenience. With different material and technology processing, laser cannon features its high performance. This product is widely acclaimed for these features.
Product Advantage
Basic Parameters
This series of laser power grid foreign object removal devices is specifically designed for the rapid removal of exposed power grid foreign objects, providing an ideal and efficient remote laser foreign object removal device for maintaining the safety of power grids and high-speed railway lines.
|
Project name |
UAV-Cyclone 500 |
|
Size[mm³] |
610*440*326 |
|
Weight[kg] |
24.5 |
|
Laser power[W] |
500+50 |
|
Power range[%] |
20-100 |
|
Wavelength[mm] |
1080 |
|
Working distance [m] |
300 |
|
Humidity [%] |
10– 90 |
|
Working temperature [℃] |
-20~40 |
|
Fiber length[cm] |
270 |
|
Battery specification[V AH] |
48V 55AH |
|
Working hours[H] |
2 |
|
Battery weight[kg] |
12.6 |
|
Power consumption [W] |
1600 |
|
Cooling system |
Air cooling |
*Note: For reference only, the specific material and width of the material to be removed are related.
Working Principle
High-energy laser is utilized to instantly dissolve foreign objects entangled in high-voltage lines without damaging transmission lines.
When it is found that there is a foreign object hanging on the grounding wire that affects safe operation, the operator aims at the target through a sight on the ground, controls the laser device to emit laser.
Through several seconds of burning and melting, the plastic-fiber foreign object is melted off, and the laser is turned off, thus completing the entire processes of handling foreign object with electricity.
The target objects of the smart grid cleaning device mainly include balloons, kites, and plastic bags.
The 500W model, with high power, is specifically designed for clearing tree branches (above 10cm).
Product Details
Steps for usage
Safety Design
Company Advantage
• Our company has obvious advantages in human resource. With a focus on talents cultivation, we have gathered a group of high-quality scientific and management talents.
• Usiland Optronics's products are mainly exported to Europe and the United States. They are highly praised by local businesses and users.
• Usiland Optronics is located in a place with traffic convenience, which is conducive for both small and large purchase.
• Our company has a professional customer service team. The service team is capable of providing one-to-one service for customers, so we can solve customers' problems efficiently.
Usiland Optronics runs the business in good faith. We produce and sell laser cleaning machines,laser bird deterrent directly from the factory at a favorable price. If you are interested, please contact us to order.
